Building the Hull Stage 2

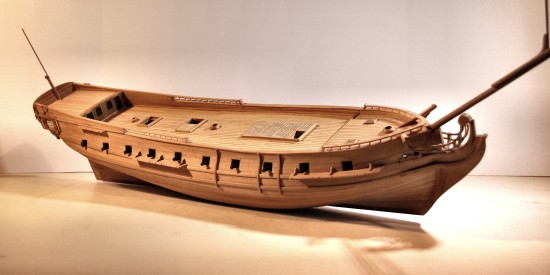

The planked hull, complete with individually planked decks. Care is taken to plank the ship in as much a similar fashion as the original ship would have been planked.

Image of Galleon Hull

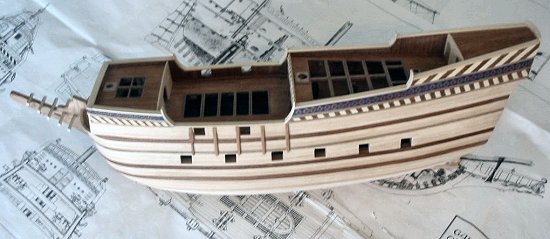

Gun ports are often built before the planking, so are all below-deck furniture and accessories that may still be visible through hatches and ports once the ship model has been completed.

Image of model hull of HMS Ontario

Great care is taken to maintain all the curves of the original in the model; sheer, camber, tumblehome, stern curvature etc. etc. The above image of the hull of HMS Ontario illustrates some of this. USS President (1800) under construction shown below.

Image of model hull of the USS President

Stern and quarter gallery construction of HMS Indefatigable (1795) shown below. Great care is taken to get everything as close to the original as possible. The angles and curves are solved in CAD before any construction is done.

Image of stern gallery

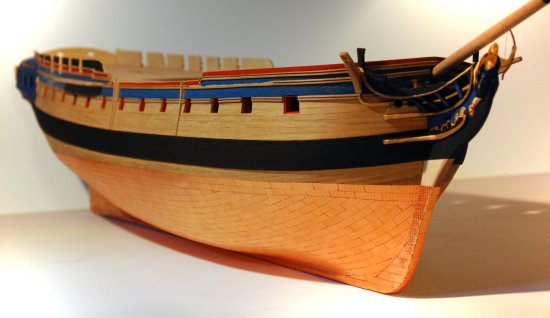

The next step could be to built the top-handrails, wales and additional hull decorations. Notice also the hull coppering below. An expensive but effective measure if a sea-going hull was to last. Freshwater vessels did not received such treatment. These thin copper plates were applied to counter the effects of mollusks, hull decay and ship worm such as the Teredo.
