Catalina 36 - SailAway

Images 1 | 2 | 3 | Process
Image of sailboat design

1989 Catalina 36 being created from images provided by the owner. 3D model of her hull shown above, extrapolated from 2D images and some available sketches.

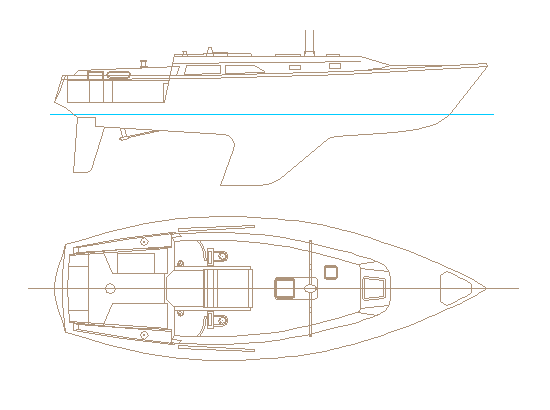

CAD drawing of sailboat
