HMS Vanguard

Images 1 | 2 | 3 | 4

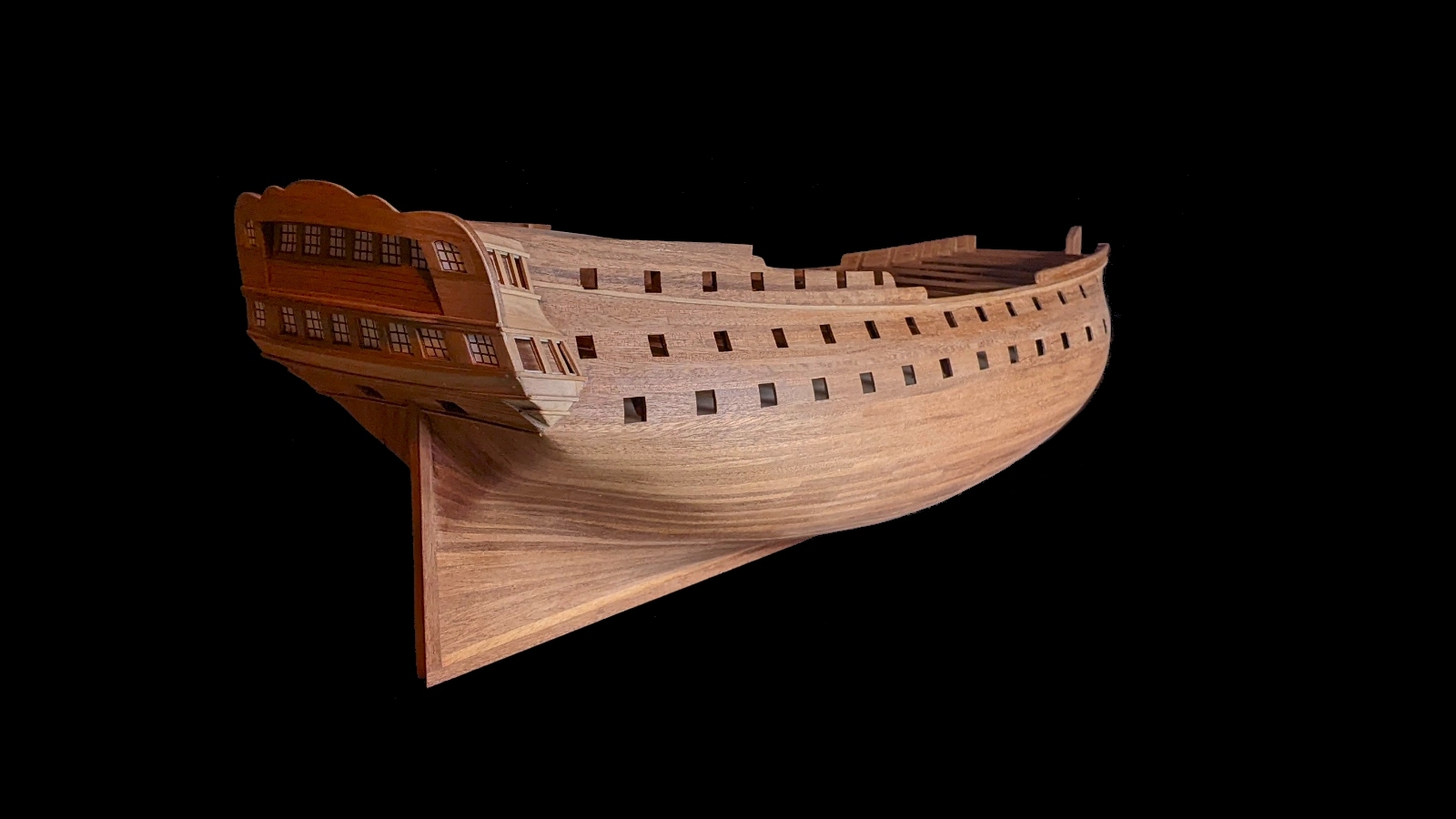

image of HMS Vanguard model in progress

Major frames/bulkheads completed and the lower gundeck has been fitted. Stern and bow structure will be added after some of the planking has been finished. Bottom image shows the stern being developed.

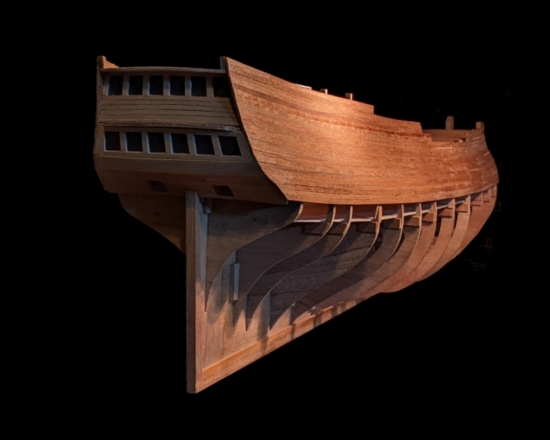

Stern development of Vanguard model
